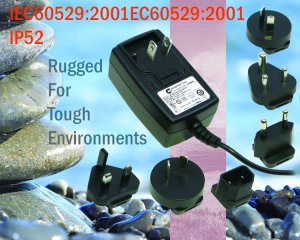

Waterproof and Weatherproof IP 42, IP52, IP67, and IP68 Power Supplies

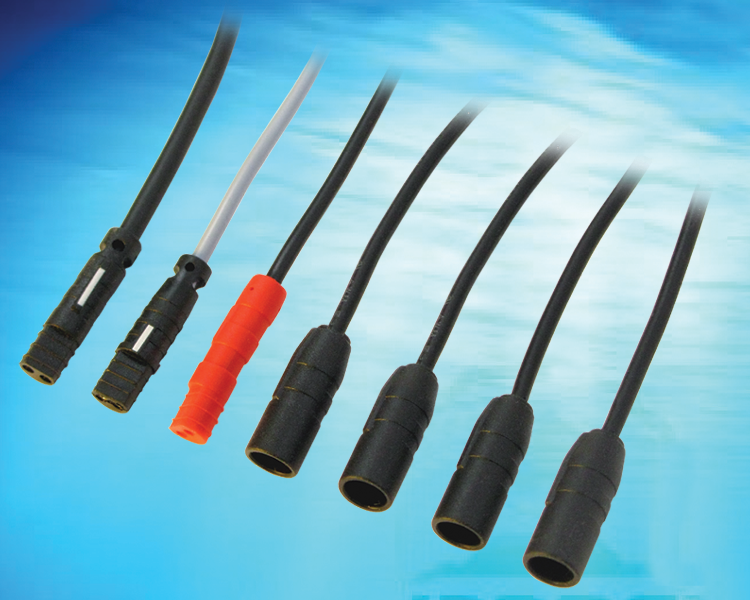

Waterproof connectors for IP68 application

Waterproof and weather proof offering from GlobTek spans all IP ratings from IPx0 through IP67 and IP68 providing the most complete IP rated product offering in the power supply industry

GlobTek offers one of the most complete Water proof and weather proof power supply offering in the industry. With some models offered with an optional IPx2 (IP42 / IP52), IPx3 (IP43/IP53), IPx4 (IP44/IP54) and some models specifically designed for IP67 and IP 68 ratings GlobTek can provide a solution to any application requiring Ingress protection.

Ingress protected Waterproof and weatherproof solutions are internationally certified to IEC/UL/EN 60950-1 (ITE), 60601-1 (Medical), 60335 (Household use), 61558 (Transformers), EN50155 (Trains Railway), Class 2 (UL 1310), and EN 60079-18 (Explosive atmospheres). Most models also comply with IEC 60068-2-52 (68-2-52) Severity 3 to 6, Salt Mist 7 day test and IEC 60068-2-6, 60068-2-64, 60068-2-27, 60068-2-29 Vibration, Shock, Bump. GlobTek’s potted/encapsulated power supplies provide a solution for most ruggedized and demanding applications.

Popular applications for GlobTek’s waterproof and weather proof series power supplies are Electronic Flush Systems, Automatic Flush Valve, Electronic Sensor Faucets, Electric and Electronic Valves, Lighting and Signage, Instrumentation and metering applications, Emergency Response equipment, and Intelligent battery charging of mobile equipment.

Custom Bespoke solutions in electrical performance and/or mechanical configurations, housings, colors, connections and otherwise are available upon request. The power supplies can be supplied with customer designated output plugs, many of which are stocked at GlobTek New Jersey USA, Münster Germany, and Suzhou China locations.

GlobTek’s line of waterproof and weatherproof power supplies are produced in GlobTek’s wholly owned ISO9001, ISO13485, and ISO14001 certified facilities in Suzhou China.

The power supplies have certifications by UL (North America), C-Tick (Australia/New Zealand), Iram (Argentina), BSMI (Taiwan), CB (Worldwide), CCC (China), Demko (Europe), eK (Korea), NRCAN (Canada), Spring (Singapore), SIQ (Europe), CU TR/Gost (Russia), South Africa, Singapore (PSB), and UkrSEPRO (Ukraine). They also comply with Canadian Nrcan efficiency requirements as well as FCC/VCC/CE emc requirements.

Made in USA or China option available. Local China to China delivery available upon request.

Weatherproof Power Supply Models

ImageModel NameModel numberWattsInput V HzOutput V RangeIp ratingDatasheet
GT-81083 Wall Plug-InGT-81083590-264 VAC, 47-63 Hz5 VDCIP41Datasheet
GTM41076 SeriesGTM41076690-264 VAC, 47-63 Hz3 - 24 VDCIP52Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-WWVV-X.X-W2AGT-81088-WWVV-X.X-W2A6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-WWVV-X.X-W2UGT-81088-WWVV-X.X-W2U6100-240V, 47- 63Hz3-24VDCIP41Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2AGT-81088-06VV-x.x-W2A6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2UGT-81088-06VV-x.x-W2U6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2GT-81088-06VV-x.x-W26100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2EGT-81088-06VV-x.x-W2E6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2AGT-81088-06VV-x.x-W2A6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GT-81088-06VV-x.x-W2UGT-81088-06VV-x.x-W2U6100-240V, 47- 63Hz6.0-12 VDC@350±50 mAIP41Datasheet
GTM91128GTM9112812100-240 VAC4.2V, 8.4V, or 12.6VIP54Datasheet
GT-81085GT-810851590-264 VAC5-24 VDCIP41Datasheet
GT-41052 Changeable BladesGT-410521590-264 VAC, 47-63 Hz5-24 VDC +48IP52Datasheet
GT-21089-XY-W2 (W3E,W3U,W3A) Wall plug-inGT-21089-XY-W21-1890-264 VAC, 47-63 Hz3-48 VDCIP41Datasheet
GTM21089-XY- T3, T2 GTM21089-XY- T3, T2 1-1890-264 VAC, 47-63 Hz 3-48 VDC IP42Datasheet
GT-81041-YYZZ- X-X-W2 Wall plug-inGT-81041-YYZZ- X-X-W22090-264 VAC 47-63 Hz 3-24 VDCIP41Datasheet
GT-81087-20VV-X.X-W2GT-81087-20VV-X.X-W220100-240 VAC5V-18VDCIP41Datasheet
GT-81087-20VV-X.X-W2EGT-81087-20VV-X.X-W2E20100-240 VAC5V-18VDCIP41Datasheet
GT-81087-20VV-X.X-W2UGT-81087-20VV-X.X-W2EU20100-240 VAC5V-18VDCIP41Datasheet
GTM93021GTM9302120100-240VAC, 47-63 HzIP68Datasheet
GT-41130GT-411302490-264 VAC, 47-63 Hz10-24IP41Datasheet
GT-41130-2GT-41130-22490-264 VAC, 47-63 Hz10-24IP41Datasheet
GT-41060-XY Changeable Blades GT-41060-XY 2590-264 VAC, 47-63 Hz5-30 VDCIP52Datasheet
GT-41060-XY Changeable BladesGT-41060-XY2590-264 VAC, 47-63 Hz5-30 VDCIP52Datasheet
GT-41131GT-411313090-264 VAC, 47-63 Hz12-48 VDCIP52Datasheet
GTM91120GTM91120-30VV-T23090-264 VAC, 47-63 Hz5-48 VDCIP52Datasheet
GTM91120-P2GTM91120-P23090-264 VAC, 47-63 Hz5-48 VDCIP68Datasheet
GTM91120-P3GTM91120-P33090-264 VAC, 47-63 Hz5-48 VDCIP68Datasheet
GT-43007-XXYYGT-4300740100-240 VACIP52Datasheet
GTM21097-XYGTM21097-XY1-5090-264 VAC, 47-63 Hz 3-48 VDCIP42Datasheet
GT(M)91099GTM91099-60VV-P26090-264 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GTM91099-60VV-T2-IMGTM91099-60VV-T2-IM6090-264 VAC, 47-63 Hz12-24 VDCIP54Datasheet
GT(M)91099-P2-P3GT(M)91099-P2-P36090-264 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GTM91099-P2-P3GTM91099-P2-P360100-240 VAC, 47-63 Hz12-24 VDCIP68Datasheet
GT-91099GT-910996090-264 VAC, 47-63 Hz12-24 VDCIP54Datasheet
GTM9100PGTM9100P12090-264 VAC, 47-63 Hz 3-48 VDCIP42Datasheet
GTM43004P120VV-x.x-P2GTM43004P120VV-x.x-P212090- 264 VAC, 47- 63 Hz 5-56IP68Datasheet
GTM43004P120VV-x.x-P3GTM43004P120VV-x.x-P312090- 264 VAC, 47- 63 Hz 5-56IP68Datasheet
