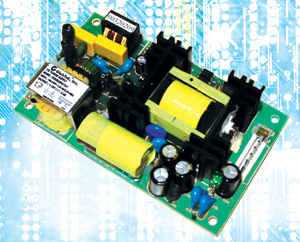

80W of continuous output power with 10CFM of airflow and GT(M)2065 series delivers 65W of continuous output power with free air convection cooling. Design has output voltages ranging from: 3.3V to 48V in 0.1V increment, single-platform design, industry standard, with Input Current-Shaper. GlobTek’s GT(M)2080 series delivers high efficiency, 85% typ., family of Open-Frame/ PCB Mount Style power supplies, has integral multi-fold heat sinks natural convection cooling, and In/Out Headers with Locking Ramp Connector for Open-Frame Configurations (non-locking headers for PCB Mount); accepts Universal Input: 90-264 Vac, features regulated output with low ripple, has Class B EMI Filter and P.F.C Correction; also Built-in Protection features: O.C./S.C., O.V., O.T. Packaged in an industry standard 3.0 x 5.0 x 1.3 (in), the series is ideal for 1U applications. Certified or designed to meet International Safety Agencies for use with Medical UL/EN 60601.1 or Information Technology UL/EN 60950 Equipment applications. The series meets Conducted and Radiated EMI Class B and complies with the immunity requirements under EN61000 series of standards. It is available in open frame, open frame with wire harness, open base plate of any size and L-Bracket with perforated top cover. Priced at (call) in OEM quantities. Made in USA option available upon request.
