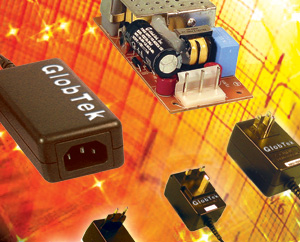

20W of continuous output power with free air convection cooling. Design has output voltages ranging from: 3.3V to 48V in 0.1V increment, single-platform design, industry standard, with Input Current-Shaper. GlobTek’s GT(M)21096 series delivers high efficiency, 85% typ., family of Open-Frame/ PCB Mount Style power supplies, has natural convection cooling, and In/Out Headers with Locking Ramp Connector for Open-Frame Configurations (non-locking headers for PCB Mount); accepts Universal Input: 90-264 Vac, features regulated output with low ripple, has Class B EMI Filter and P.F.C Correction; also Built-in Protection features: O.C./S.C., O.V. Packaged in an industry standard 84 X 41 X 28 (mm).

Certified to International Safety Agencies for use with Medical UL/EN 60601.1 or Information Technology UL/EN 60950 Equipment applications with documentation available. The series meets Conducted and Radiated EMI Class B and complies with the immunity requirements under EN61000 series of standards. It is available in external & wall plug-in international configurations. Priced at (call) in OEM quantities. Made in USA option available upon request.
